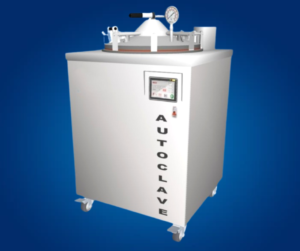

Fully Automatic Vertical Autoclave
- grade and Outer shell of Stainless-Steel sheet – 304 grade, mirror polish.
- The Boiler and outer shell is provided with air insulation.
- Lid is made of die pressed Thick Stainless-Steel plate & is equipped with Pressure gauge, Steam release/Exhaust valve & spring loaded safety valves & ¼” BSP Port fitted with coupling for validation purpose.
- Foot lifting arrangement for the lid.
- Fully Argon welded to avoid steam and pressure leakage.
- Heavy duty industrial flange heaters.
- Full sterilization cycle including Air purging, Sterilizing hold time, Cycle end with release/exhaust of pressure & alarm is automatic.
- Microprocessor based Controller with time and temperature programmable by user.
- Timer Range: 1- 99 Minutes.
- Temperature Sensor: PT-100.
- Low water level alarm with heater cut off.
- Perforated basket made of Stainless-steel sheet – 304 grade.
- Operates on 230 Volts AC Single phase 50 Hz.
MODEL | SIZE (DIA X HT) | RATING | CAPACITY (IN LTR.) | NO. OF BASKET |
TC-AUV-1 | 10 Ø x 18 Ht | 2000 W. | 22 | 1 |
TC-AUV-2 | 12 Ø x 20 Ht | 2000 W. | 35 | 1 |
TC-AUV-3 | 14 Ø x 22 Ht | 3000 W. | 52 | 1 |
TC-AUV-4 | 16 Ø x 24 Ht | 4000 W. | 90 | 1 |
TC-AUV-5 | 18 Ø x 24 Ht | 4000 W. | 95 | 1 |
TC-AUV-6 | 18 Ø x 30 Ht | 4500 W. | 120 | 2 |
TC-AUV-7 | 22 Ø x 30 Ht | 5000 W. | 175 | 2 |
TC-AUV-8 | 22 Ø x 36 Ht | 6000 W. | 200 | 2 |
LABORATORY AUTOCLAVE –VERTICAL TYPE
Laboratory Autoclave
- The Boiler and outer shell is provided with air insulation.
- Grade and Outer shell of Stainless-Steel sheet – 304 grade Mirror polish.
- Lid is made of die pressed Thick Stainless-Steel plate & is equipped with Pressure gauge, Steam release/Exhaust valve & Spring loaded safety valves.
- Foot lifting arrangement for the lid.
- Fully Argon welded to avoid steam and pressure leakage.
- Heavy duty industrial flange heaters.
- Working Pressure: 15 PSI.
- Perforated basket made of Stainless-Steel sheet – 304 grade.
- Operates on 230 Volts AC Single phase 50 Hz.
MODEL | SIZE (DIA X HT) | RATING | CAPACITY (IN LTR.) | NO. OF BASKET |
TC-LAV-1 | 10 Ø x 18 Ht | 2000 W. | 22 | 1 |
TC-LAV-2 | 12 Ø x 20 Ht | 2000 W. | 35 | 1 |
TC-LAV-3 | 14 Ø x 22 Ht | 3000 W. | 52 | 1 |
TC-LAV-4 | 16 Ø x 24 Ht | 4000 W. | 90 | 1 |
TC-LAV-5 | 18 Ø x 24 Ht | 4000 W. | 95 | 1 |
TC-LAV-6 | 18 Ø x 30 Ht | 4500 W. | 120 | 2 |
TC-LAV-7 | 22 Ø x 30 Ht | 5000 W. | 175 | 2 |
TC-LAV-8 | 22 Ø x 36 Ht | 6000 W. | 200 | 2 |
PORTABLE AUTOCLAVE
- All the parts are made of Stainless steel – 304 grade.
- Easily replaceable heater and rubber gasket.
- Pressure gauge and spring loaded safety valves & steam release/exhaust valve fitted on lid.
- Operates on 230 Volts AC Single phase 50 Hz.
- Supplied without Basket/Dressing Drum.
MODEL | SIZE | RATING |
TC-AUP-1 | 12” X 12” | 2000 W. |
