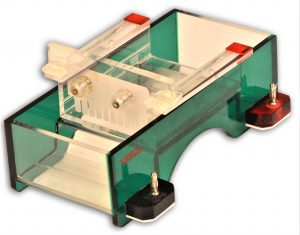

HG1
TRI-SLIDE
Model | Gel Size | Buffer Capacity | |
HG1 | 7.5 (w) x 10 cm/ 10 well | 250 mL | |
HG2 | 10 (w) x 15 cm/ 15 well | 500 mL | |
HG3 | 15 (w) x 20 cm/24 well | 1.5 L | |
Tri-Slide | 8 (w) x 16 cm/ for 3 glass slides | 200 mL |
Special Features Of All Models
- No leakage from joints – use of special glue
- No breakage of wire – use of thick and pure platinum wire (Purity 99.99%)
- UV-transparent tray ( material use is UV transparent) with gripping design to avoid slippage of gel, no photo beaching and photo nicking of samples
- Single directional migration of nucleic acids and proteins
- Adjustable comb height, Comb thickness (in mm) 1,1.5,2
- Inter-well distance (in mm) 2
- Thick platinum wire (purity 99.99%)
Vertical Electrophoresis Apparatus
VG1
Model | Gel Size | Buffer Capacity | |
VG1 | 8.5 (w) x 7.5 cm 10 well | 150 mL | |
VG2 | 8.5 (w) x 12 cm 10 well | 350 mL | |
VG3 | 10 (w) X 12 cm 12 well | 1 L |
Special Features Of All Models
- No leakage from joints – use of special glue
- No breakage of wire – use of thick and pure platinum wire (Purity 99.99%)
- Two gels per side.
- Single direction migration of molecules.
- Minimum buffer requirement.
- Active cooling of gel due to deep cathodic tank.
- In built casting of gel.
Transfer Apparatus
Slimblot
Model | Gel Size | No. of transfer Cassette | Buffer Capacity | |
Ecoblot | 8 (w) x 6 cm | 1 | 450 mL | |
Mediblot | 10 (w) x 10.5 cm | 2 | 2 L |
Special Features Of All Models
- No leakage from joints – use of special glue
- No breakage of wire – use of thick and pure platinum wire (Purity 99.99%)
- Western blotting apparatus can transfer two gels per cassette
- Single direction migration of molecules
- Minimum buffer requirement
- Maximum transfer of molecules due to cassette design
- High fidelity transfer
Power Supply
Electrasupreme
Model | Range | Suitable For | |
Electrasupreme-100 | 300V/100 mA | Vertical, Horizontal, Blotting app. | |
Electrasupreme-200 | 500V/200 mA | Vertical, Horizontal | |
Electrasupreme-400 | 300V/400 mA | Vertical, Horizontal |
Special Features Of All Models
- Rugged, protection against short circuit.
- Independent digital display for V & mA.
- Two/ four out puts in parallel.
- Autocross over – Use of MOSFET technology
- Digital timer (optional)
- Cold room condensation minimizing circuit (optional)
Transilluminators
UV-Transilluminitor
Model | Window Size | Nos. of UV Tubes366nm | |
UVT - 4 | 10 (w) x 10 cm | 4 Nos. | |
UVT - 8 | 20 (w) x 20 cm | 8 Nos. |
Special Features Of All Models
- Use of special UV tube – emits light similar sunlight.
- Protective UV- opaque cover for cutting the bands.
- UV- cutoff filter enhances intensity of band.
- Easy to capture image thro camera/ mobile.
- No photo bleaching/ nicking of Nucleic acids if expose longer time to UV light
Gel Doc (ECO)
Gel Doc
Special Features Of All Models
- No photo beaching and photo nicking of samples – use of special diffusing UV transparent window (20 x 20 cm)
- Eight UV tubes (366nm), with Hi Lo intensity
- Camera: CMOS camera, Pixel Resolution: 18 Mega Pixel.
- Bit Depth: 8 bit Gray: 24Bit RGB
- Zoom Lens: 3X, 18-55mm
- Available with and without cabinet
