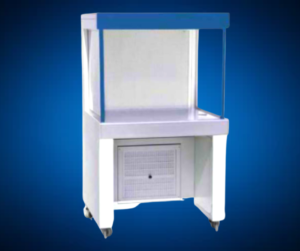

Laminar Air Flow
MODEL | WORKING AREA (LXWXH) (FEET) | HEPA FILTER DIMENSION | PRE-FILTER | ILLUMINATION |
TC-HLF-1 S/G | 2X2X2 | 24”X24”X6” | 1 NOS. | 1X20 W. |
TC-HLF-2 S/G | 3X2X2 | 36”X24”X6” | 1 NOS. | 1X20 W. |
TC-HLF-3 S/G | 4X2X2 | 48”X24”X6” | 1 NOS. | 1X40 W. |
TC-VLF-1 S/G | 2X2X2 | 24”X24”X6” | 1 NOS. | 1X20 W. |
TC-VLF-2 S/G | 3X2X2 | 36”X24”X6” | 1 NOS. | 1X40 W. |
TC-VLF-3 S/G | 4X2X2 | 48”X24”X6” | 1 NOS. | 1X20 W. |

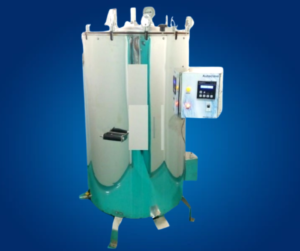

AUTOCLAVE –VERTICAL TYPE
LABORATORY AUTOCLAVE
MODEL | SIZE (DIA X HT) | RATING | CAPACITY (IN LTR.) | NO. OF BASKET |
TC-LAV-1 | 10 Ø x 18 Ht | 2000 W. | 22 | 1 |
TC-LAV-2 | 12 Ø x 20 Ht | 2000 W. | 35 | 1 |
TC-LAV-3 | 14 Ø x 22 Ht | 3000 W. | 52 | 1 |
TC-LAV-4 | 16 Ø x 24 Ht | 4000 W. | 90 | 1 |
TC-LAV-5 | 18 Ø x 24 Ht | 4000 W. | 95 | 1 |
TC-LAV-6 | 18 Ø x 30 Ht | 4500 W. | 120 | 2 |
TC-LAV-7 | 22 Ø x 30 Ht | 5000 W. | 175 | 2 |
TC-LAV-8 | 22 Ø x 36 Ht | 6000 W. | 200 | 2 |
Deep Freezer
Deep Freezer
MODEL | WORKING SPACE (WXDXH) (CM) | CAPACITY |
TC-VDF-1 S/G | 45x40x60 | 100 |
TC-VDF-2 S/G | 50x43x85 | 170 |
TC-VDF-3 S/G | 60x55x90 | 265 |
TC-VDF-4 S/G | 70x65x95 | 425 |
TC-VDF-5 S/G | 78x50x167 | 650 |
TC-HDF-1 S/G | 60x40x45 | 100 |
TC-HDF-2 S/G | 60x40x70 | 170 |
TC-HDF-3 S/G | 90x40x70 | 265 |
TC-HDF-4 S/G | 110x50x78 | 425 |
TC-HDF-5 S/G | 167x50x78 | 650 |

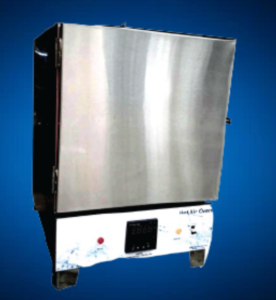

Hot air oven
Hot air oven
MODEL | WORKING SPACE (WXDXH) (CM) | CAPACITY | WATTS | SHELVES |
TC-HAO-1 S/G | 14x14x14 | 45 LTR. | 1500 W | 2 NOS. |
TC-HAO-2 S/G | 18x18x18 | 95 LTR. | 2000 W | 3 NOS. |
TC-HAO-3 S/G | 18x18x24 | 125 LTR. | 2500 W | 3 NOS. |
TC-HAO-4 S/G | 24x24x24 | 224 LTR. | 3000 W | 3 NOS. |
TC-HAO-5 S/G | 24x18x36 | 250 LTR. | 3000 W | 3 NOS. |
TC-HAO-6 S/G | 24x24x36 | 325 LTR. | 3500 W | 4 NOS. |

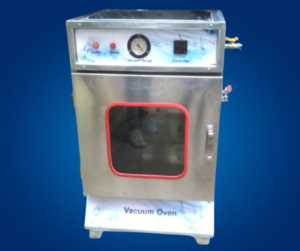

VACUUM OVEN (ROUND & RECTANGULAR)
VACUUM OVEN (ROUND & RECTANGULAR)
MODEL | CHAMBER SIZE | RATING | TRAYS |
TC-VOR-1 S/G | 8”X8”X12” | 1000 W. | 2 NOS. |
TC-VOR-2 S/G | 12”X12”X12” | 1200 W. | 2 NOS. |
TC-VOR-3 S/G | 12”X12”X16” | 1750 W. | 2 NOS. |
TC-VOR-4 S/G | 5 LTR. FLASK | 2000 W. | 3 NOS. |
TC-HOB-5 S/G | 10 LTR. FLASK | 2250 W. | 3 NOS. |
Universal Water Bath- Rectangular- Digital (Argon Welded)
Universal Water Bath
MODEL | BATH SIZE (LXWXD (CM) | LID | WATTS |
TC-WBR-1 | 35X25X10 | 6 HOLES OF 7.5CM DIA | 1000 W. |
TC-WBR-2 | 40X30X10 | 12 HOLES OF 7.5CM DIA | 1500 W. |
High – Temperature Oil Bath: Thermostatic
High – Temperature Oil Bath: Thermostatic
MODEL | FLASK CAPACITY | WATTS | WATTS |
TC-HOB-1 S/G | 1 LTR. FLASK | 1000 | 7”x5” |
TC-HOB-2 S/G | 2 LTR. FLASK | 1000 | 8”X6” |
TC-HOB-3 S/G | 3 LTR. FLASK | 1500 | 9”X7” |
TC-HOB-4 S/G | 5 LTR. FLASK | 2000 | 11”X9” |
TC-HOB-5 S/G | 10 LTR. FLASK | 2000 | 13”X11” |
TC-HOB-6 S/G | 20 LTR. FLASK | 2500 | 15”X13” |

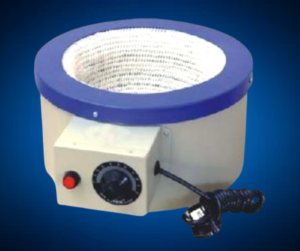

HEATING MANTLE
Heating Mantle
MODEL | FLASK CAPACITY | WATTS |
TC-HTM-1 | 100 ml | 60 |
TC-HTM-2 | 250 ml | 150 |
TC-HTM-3 | 500 ml | 200 |
TC-HTM-4 | 1 Ltr. | 300 |
TC-HTM-5 | 2 Ltr. | 450 |
TC-HTM-6 | 3 Ltr. | 500 |
TC-HTM-7 | 5 Ltr. | 600 |
TC-HTM-8 | 10 Ltr. | 2x600 W. |
TC-HTM-9 | 20 Ltr. | 3x600 |
The Smart Personal Centrifuge With Microprocessor iFuge
The Smart Personal Centrifuge With Microprocessor iFuge M08 / M08VT)
MODEL | Rotar | Maximum RPM / RCF (g) | Digital Display | Imbalance Detection | Noise Level | Variable Speed | Timer | Dimensions (W x D x H) |
ifuge M08VT | 8 X 1.5 / 2.0 ml Microtubes | 6000 / 2000 g | Yes | Yes | < 55 ab | Yes (1000 -6000RPM | 1-25 Minutes & | 162 x 157 x 115 |
iFuge M08 | 8 X 1.5 / 2.0 ml Microtubes | 6000 / 2000 g | No | No | < 55 ab | N.A. | Infinite | 162 x 157 x 115 |

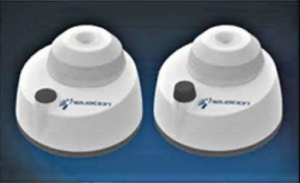

Mini Vortex Mixer With Brushless Motor iFuge
Mini Vortex Mixer With Brushless Motor iFuge
MODEL | Max RPM | Orbital diameter | Motor type | Speed setting | Max tube diameter | Max lod capacity | Press activation | Protection Class | Dimension ( W x D x H) in mm | Weight |
ifuge Jr. | 4500 rpm | 4.5 mm Ø | Brushless DC | No | 30 mm | 100 gm | Yes | IP 40 | 100 x 100 x 67 mm | 550 gm |
iFuge Jr. VT | 4500 rpm | 4.5 mm Ø | Brushless DC | Yes | 30 mm | 100 gm | Yes | IP 40 | 100 x 100 x 67 mm | 550 gm |

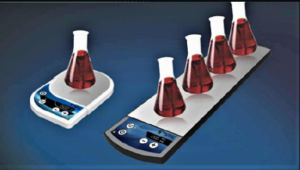

Motorless Ultra Slim magnetic stirrer
Motorless Ultra Slim magnetic stirrer
MODEL | Max RPM | Speed setting | Capacity | Time setting | Digital display | Recommended bar length | Pulse function | Sync Mode | Last run memory | Diemension (WxDxH) in mm | Weight | Protection Class |
iStir UNO | 1500 RPM | From 15 RPM at every 50 RPM | 1 x 800 ml | 1 to 99 mins | Yes | 25 mm | Yes | NA | Yes | 120 x 164 x 12 | 400 gm | IP 64 complaint design |
iStir QUATTRO | 1200 RPM | From 15 RPM at every 50 RPM | 4 x 500 ml | 1 to 99 mins | Yes | 25 mm | Yes | Yes | Yes | 520 x 120 x 12 | 1.5 Kg | IP 64 complaint design |

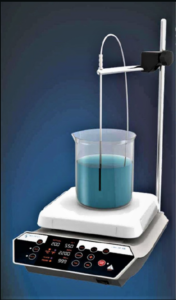

Hot Plate magnetic stirrer
Hot Plate magnetic stirrer
MODEL | Stirring Quantity in Ltr (max) | Heating temp range (-C ) | Speed range (RPM) | Number of stirrer positions | IP Rating | Setup plate feature | Set-up plate dimension | RS 232 interface | Weight | Temp accuracy of setup plate | Safety temp circuit | Product weight (KG) | Slip detection | Dimension (W x D x H) |
ifuge Jr. | 20 | Ambient to | 200 - 2200 | 1 | IP 21 | Ceramic plate | 180 x 180 mm | 100 x 100 x 67 mm | Yes | - 1 - C | yes | 4.8 Kg | Yes | 330 x 220x 85 mm |
iFuge Jr. VT | 20 | Ambient t0 | 200 - 2200 | 1 | IP 21 | Ceramic plate | 180 x 180 mm | 100 x 100 x 67 mm | Yes | - 0.1- C | yes | 4.8 Kg | Yes | 330 x 220x 85 mm |

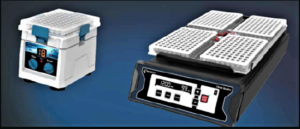

Personal Microplate stirrer
Personal Microplate stirrer
MODEL | Motor Type | Orbital motion | Number of plate | Variable speed | Run time | Pulse mode | Maximum Voume | Inbuilt Cunterbalance | Dimensions (L x W x H) | Digital display | Power consumption | Attachments (included |
iShak BLUnoVT | BLDC motor | 2 mm | 1 | 300 RPM to 1800 | 1 to 99 min & inf | No | 384 x 60 μl | Yes | 127 x 85 x 86 mm | Yes | 15 W | Replaceable clamps Foam attachment for |
iShak Quattro | BLDC motor | 3 mm | 4 | 200 RPM to 1200 | 1 to 999 mins & | Yes | 4 plates x 384 x | Yes | 88 x 343 x | Yes | 36 W | Na |
Hot Plate
Hot Plate
MODEL | FLASK CAPACITY | RATING |
TC-HTP-1 S/G | 8” Dia | 1200 W. |
TC-HTP-2 S/G | 9” Dia | 1500 W. |
TC-HTP-3 S/G | 12” Dia | 2000 W. |
TC-HTP-4 S/G | 10”x12” | 1200 W. |
TC-HTP-5 S/G | 10”x16” | 1500 W. |
TC-HTP-6 S/G | 12”x18” | 2000 W. |
TC-HTP-7 S/G | 18”x24” | 3000 W. |

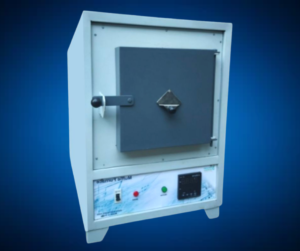

Muffle Furnace
Muffle Furnace
MODEL | MUFFLE SIZE (INCH) | CAPACITY (LTRS) | RATING WATTS |
TC-MFF-1 S/G | 4”X4”X9” | 2.30 | 2000 W. |
TC-MFF-2 S/G | 5”X5”X10” | 4.25 | 2500 W. |
TC-MFF-3 S/G | 6”X6”X12” | 6.75 | 3500 W. |
TC-MFF-4 S/G | 8”X8”X12” | 12.00 | 4500 W. |
TC-MFF-5 S/G | 9”X9”X18” | 23.80 | 7000 W. |

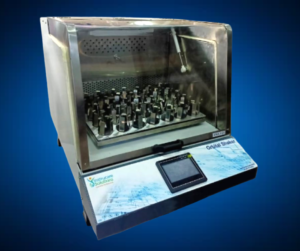

ROTARY SHAKER/ORBITAL SHAKER
ROTARY SHAKER/ORBITAL SHAKER
MODEL | MUFFLE SIZE (INCH) | CAPACITY (LTRS) | RATING WATTS |
TC-MFF-1 S/G | 4”X4”X9” | 2.30 | 2000 W. |
TC-MFF-2 S/G | 5”X5”X10” | 4.25 | 2500 W. |
TC-MFF-3 S/G | 6”X6”X12” | 6.75 | 3500 W. |
TC-MFF-4 S/G | 8”X8”X12” | 12.00 | 4500 W. |
TC-MFF-5 S/G | 9”X9”X18” | 23.80 | 7000 W. |
Bio-Safety Cabinet
Bio Safety Cabinet
